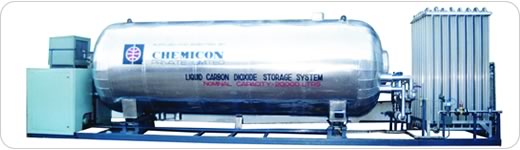

The Company is a pioneer in the field of storage systems
for CO2 including mobile tankers.
| Pressure
Vessel |
The
Vessel is designed to IS or ASME code ranging from 10
CuM to 200 CuM with maximum working pressure upto 350
psig. |
|
Insulation |
150
mm polyurethane foam with bright aluminium cladding
|
| Piping |
Stainless
steel with the necessary ball valves and check valves
with complete stainless steel construction.
|
| Weight
Indicator |
Differential
pressure guage or Load cells
|
| Vapouriser |
Atmospheric
Vapouriser ; capacities ranging from 200 Kg/hr to 600
Kg/hr
|
| Control
Panel |
To
house the safeties, indicators, transformer, etc.
|
| Structural
Skid |
To
mount the entire system including the safeties, piping,
etc.
|
| Transfer
pump |
To
pump the liquid CO2 from the tanker to the
storage tank - 10,000 Kg/hr.
|
| Refrigeration |
External
refrigeration to maintain the temperature inside the storage
tank specially in cases where the tank is under shutdown
for long duration.
|
| Orientation |
The
storage tanks can be offered either horizontal or vertical.
|
| Cylinder
Filling |
The
cylinder filling station including dual pumps with motors,
piping, safeties, filling manifold ( Stainless steel
) with brass CO2 valves, weighing scales
and a revert system to route back the excess / vented
CO2 during cylinder filling back to the storage
tank. |
|
(
The exact scope of supply needs to be confirmed by the
customer based on the above options available)
|
|
The
Storage system can be provided for applications of CO2
such as WELDING, BEVERAGE INDUSTRY, FOOD PROCESSING, SUPER
CRITICAL EXTRACTION, SPICE GRINDING & CYLINDER FILLING
APPLICATIONS.
|
