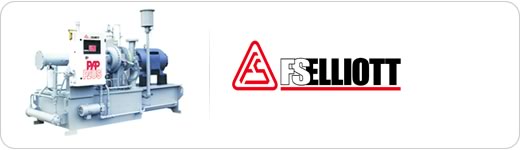

CICB-Chemicon in association with FS-Elliott Co. LLC, USA,
offers the PAP range of engineered air compressors for traditional
industrial applications as well as in compliance to rigid
API 672 standards.
The PAP PLUS range of compressors offer the following features
:
- High base-load & part-load efficiency
- Optimized year round efficiency
- Fewer rotating and stationary parts for high reliability
- Rugged industrial design
- Package concept provides compressor protection
- Easy accessibility for low-cost maintenance.
- No oil contamination in the air lines
- Easy to operate
- Easy to maintain
- Rotors can be removed and reinstalled without rebalancing
- Unitized construction simplifies installation.
- Standardized design for easy uprating.
- Low noise levels for OSHA compliance
- Professional service
| PAP
PLUS Compressor Frame |
Nominal
Capacity |
Nominal
Driver Power |
Overall Dimensions |
Approximate
Weight |
|
|
|
|
ICFM |
m3/min |
HP |
kW |
in |
|
in |
|
in |
|
lb |
kg |
|
SA |
6000-1,500 |
17-43 |
250-350 |
187-261 |
114 |
2,896 |
60 |
1,524 |
84 |
2,134 |
10,000 |
4,550 |
|
DA3 |
800-2,000 |
23-57 |
200-400 |
150-300 |
92 |
2,337 |
69 |
1,753 |
122 |
3,099 |
10,600 |
4,800 |
|
DA3 |
1,500-3,400 |
43-96 |
350-700 |
261-522 |
124 |
3,150 |
61 |
1,549 |
81 |
2,057 |
14,000 |
6,350 |
|
DA3 |
3,500-5,700 |
100-161 |
800-1,250 |
597-932 |
174 |
4,420 |
75 |
1,905 |
96 |
2,438 |
27,000 |
12,250 |
|
DA3 |
5,500-11,000 |
156-311 |
1,000-2,000 |
746-1,492 |
195 |
4,953 |
152 |
3,861 |
120 |
3,048 |
38,000 |
17,250 |
|
DA3 |
10,000-18,000 |
283-510 |
2,000-3,500 |
1,492-2,611 |
252 |
6,401 |
134 |
3,404 |
153 |
3,886 |
70,000 |
31,750 |
|
